Differences Between 3D Printing with Carbon Fiber and Automated Carbon Fiber Layup

👁 Reads: 101

Carbon fiber is one of the newest materials which is used due to its low weight and high tensile strength and is applied in numerous spheres including aviation and sports. These two major techniques in handling carbon fiber in the current world are the 3D printing with carbon fiber and the automated carbon fiber layup. Although, both techniques are quite useful and have their own specific benefits and uses, they are not the same. This article examines these two methods, the differences in their procedures, advantages, and disadvantages that will help in understanding how they are useful in the production of custom carbon fiber products.

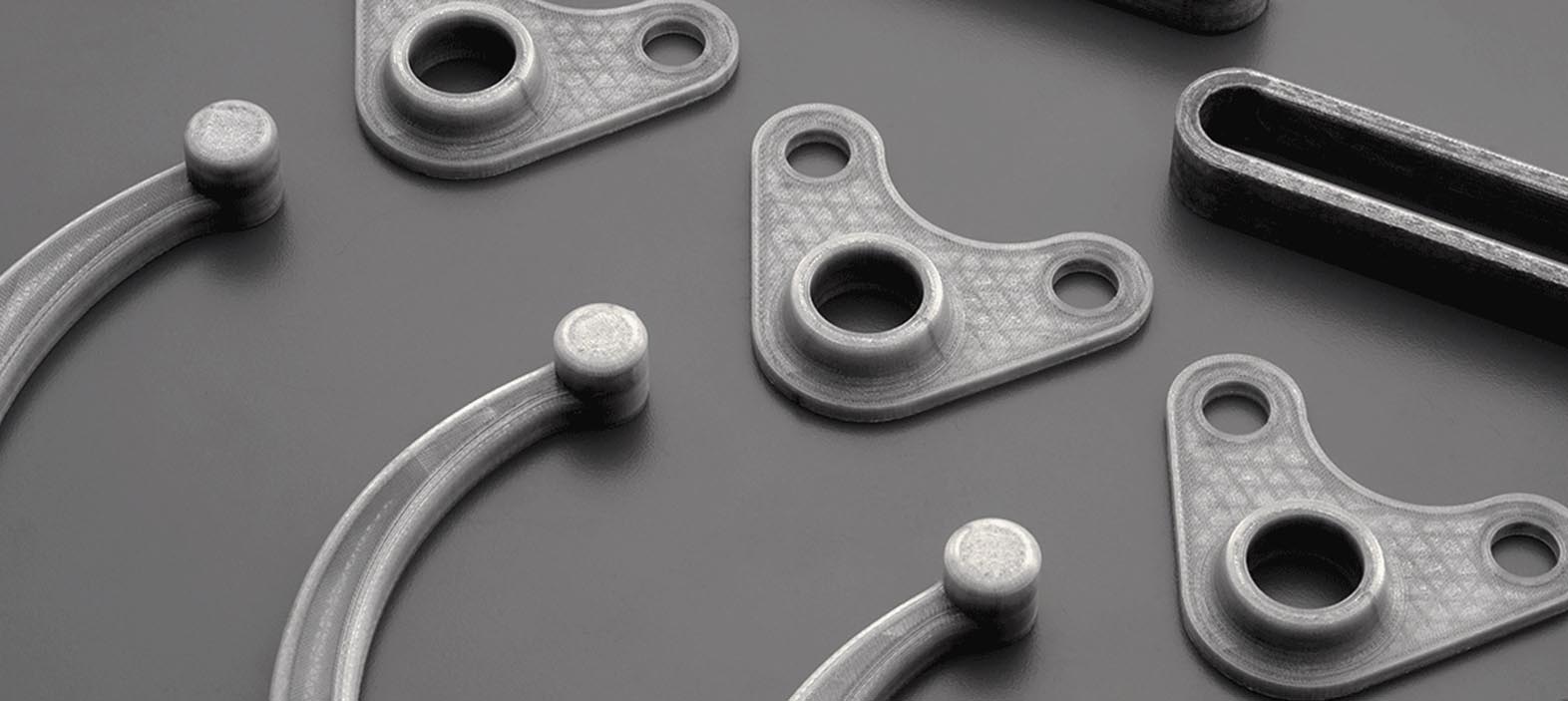

3D Printing with Carbon Fiber

Carbon fiber 3D printing or additive manufacturing is a process through which three dimensional objects are made. It is done by successively adding material layer by layers. This method of incorporate carbon fiber in the printing process of the part, which in turn increases the strength of the part produced.

Process

To create a composite filament in carbon fiber 3D printing, the material is often joined with a thermoplastic polymer. To build the component in layers, this filament is then put into a 3D printer, where it is heated to a molten condition and then extruded out through a nozzle. The strength and stiffness of the printed objects are improved by the filament's addition of carbon fiber.

Benefits

1. Design Freedom- Shapes and patterns that are not possible to create using standard production techniques are now possible to create thanks to 3D printing. This is helpful especially in creating carbon fiber products that are made to order to fit certain specifications.
2. Rapid Prototyping - They enable the creation of prototypes in a short time thus speeding the design and testing phases which in turn reduces on the time and money used in the development.
3. Material Efficiency - Additive manufacturing does not require the use of extra material in the sense that it only deposits the needed material for the part being made.
4. Cost-Effective for Small Runs- Suitable for short runs where the cost of tooling for other methods would be very high.
5. Customization- This process enables one to make changes during the production process thus ideal for custom carbon fiber products.

Limitations

1. Strength and Durability - Even while carbon fiber components manufactured using 3D printing are strong, their performance might not be as good as that of those made using standard carbon fiber layup methods, especially in high-stress situations.
2. Surface Finish - It may be necessary to polish or perform other post-processing on certain 3D printed objects in order to get the ideal smooth surface.
3. Size Constraints - It is often difficult to manufacture larger parts due to the restricted build volume or envelope of a 3D printer.
4. Layer Adhesion - This method may not allow for the type of strong bonding of layers seen with continuous fibers which are used in layup processes.

Applications

1. Aerospace - Used for lightweight, high-strength components in aircraft and spacecraft.
2. Automotive - For producing custom carbon fiber products like brackets, fixtures, and even entire body panels.
3. Medical - Used in the creation of prosthetics and medical devices.
4. Sports Equipment - Used in the design of custom sports gear, enhancing performance and reducing weight.
5. Consumer Electronics - Applied in the manufacturing of durable and lightweight enclosures for electronic devices.

Automated Carbon Fiber Layup

The technique of laying carbon fiber fabric or tape on a mold is known as automated carbon fiber layup, sometimes known as automated fiber placement (AFP) or automated tape laying (ATL). This process is widely applied in sectors such as the aerospace and automotive industries where there is a need for high performance composite parts.

Process

In this process, prepreg, or carbon fiber fabric or tape, is put in position on a mold in an automated carbon fiber layup process. The prepreg material contains a resin that, when heated and under pressure, hardens to form a very stiff and sturdy structure. To attain the right fiber position and the necessary part strength, each layer is connected.

Benefits

1. High Performance - The pieces that are created have good physical characteristics and are thus suitable for use in high-stress applications thanks to the automated layup process. This is as a result of the carbon fiber fabric being placed in a particular way to offer a solid and even construction.
2. Mass Production - This process is suitable for making large parts like aircraft wings, car doors or even car body panels since it ensures consistent high quality of products.
3. Quality Control- Automation minimizes the effects of human error in creating carbon fiber products which are of high quality and standard.
4. Speed- Rate of production of large parts is fast thus reducing the time taken in manufacturing.
5. Integration with Other Processes - This technique can be easily integrated with other manufacturing processes which in turn increases the overall production effectiveness.
6. Reduction of Material wastage- Materials are well placed and cut in the right sizes to minimize wastage.

Limitations

1. Cost- The initial setup and equipment costs for automated layup systems are high, making it less accessible for small-scale production or custom carbon fiber products.
2. Complex Programming - Programming the robotic system to layup complex geometries can be time-consuming and require specialized expertise.
3. Material Waste - The cutting and trimming of prepreg materials can result in more waste compared to additive manufacturing processes.
4. Limited Flexibility - Less flexible for small runs or highly customized parts compared to 3D printing.

Applications

1. Aerospace - For producing large structural components like the wings and fuselages.
2. Automotive- Used in manufacturing the lightweight body panels and structural parts for many high-performance vehicles.
3. Wind Energy - Used in the construction of wind turbine blades, benefiting from the material’s strength and lightness.
4. Marine - Also used in boat and yacht building for strong, lightweight hulls and components.
5. Industrial Machinery - Employed in the creation of robust, lightweight parts for various industrial applications.

Key Differences

Conclusion

The carbon fiber industry has changed considerably as a result of technological developments in 3D printing and automated layup. Although each approach has advantages and disadvantages, the decision is based on the particular application and production requirements. In the end, these developments provide a more effective and economical method of producing customized carbon fiber goods, creating new opportunities in industries like automotive and aerospace. We can drive future innovations and expect even more amazing developments in customized carbon fiber products by embracing these technologies.
