What Is a Composite Autoclave & How Does It Work? Pros and Cons

👁 Reads: 1087

Composite autoclaves are essential in fabricating high-tech products like carbon fiber for different industry sectors. These specialized devices are very important because to achieve lightweight and high strength and durability of the final product required for aerospace, automotive and sports equipment industries.

But what is a composite autoclave? And, how does it function? In this article, key aspects relating to the composite autoclaves, their advantages and disadvantages, together with a broad analysis of this strategic technology in manufacturing, will be examined.

Understanding Composite Autoclaves

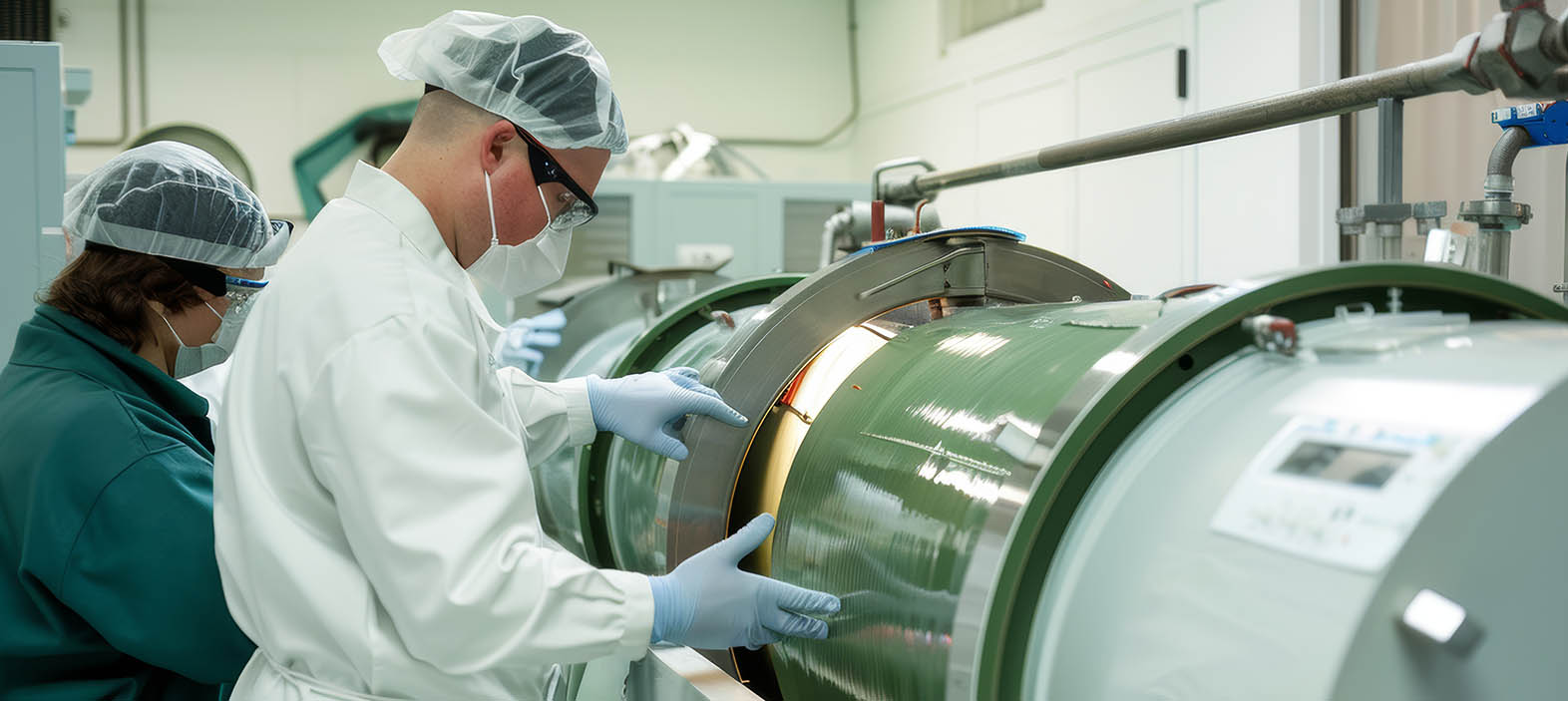

It is a large pressure vessel that is used in processing of composite materials especially the ones containing carbon fibers at high temperatures and pressure. These controlled conditions ensure that the composite material cures effectively and produces products with enhanced mechanical properties such as strength, stiffness and durability. It is essential to use autoclaves to cure carbon fiber products like carbon fiber sheets and carbon fiber tubes.

Major Components of a Composite Autoclave

1. Pressure Vessel – This is the central part of the composite chamber where the composite materials are to be accommodated. It must possess high mechanical strength and be able to function in high temperature and pressure environment.
2. Heating System – This is to ensure that there is adequate supply of heat to dry Composite Material after mold making. This system must be accurate to allow for equal heating of the chamber at any given time.
3. Vacuum System - This is used to pull out air from the composite layup to reduce voids or defects.
4. Control System – The system that is used for the management of temperature, pressure, and vacuum to keep the process parameters within the required range.

The Mechanism of a Composite Autoclave

The curing process within a composite autoclave can be broken down into several key stages:

1. Layup and Bagging - The process begins with the precise arrangement of the composite layers, which may include carbon fiber sheets or prepreg carbon fiber fabrics depending on the design. This is followed by the vacuum bagging process that involves encapsulating the composite layup to eliminate air and to guarantee proper consolidation of the layering.
2. Loading and Sealing - The bagged composite assembly is then put into the autoclave chamber. The steel door with dimensions of the mold is then closed and sealed tightly to avoid the pressure loss during the curing process.
3. Evacuation- The air is sucked out of the chamber with the help of a vacuum pump. This step reduces the amount of air trapped in the layup and if not done may lead to void formations hence affecting the final composite structure.
4. Heating and Pressurization - The autoclave uses high-temperature, usually from steam of some other inert gas such as nitrogen. This increases the temperature inside the chamber with reference to the curing profile for the desired resin system. Simultaneously, the autoclave applies pressure to the chamber. The heat and pressure that are exerted in the production process causes a thorough curing of the resin and good adhesion of the fibers.
5. Holding and Cooling - After the required temperature and pressure has been attained, the autoclave keeps it constant to ensure that the curing process is done completely. After this holding period the chamber is slowly cooled down to a temperature where it is safe for unloading.
6. Unloading and Inspection - The composite part is unloaded once the autoclave has cooled down and the door of the autoclave is opened. The final product is examined and checked thoroughly for its quality and to meet the strength, dimensions, and surface finish required.

Advantages of Using Composite Autoclaves

1. High Quality and Strength - Autoclave curing results in composite parts with high strength and stiffness. The controlled environment reduces the possibilities of defects and therefore produces components that are of high quality.
2. Consistency and Repeatability - It allows for repeatable results as temperature, pressure, and vacuum range can be controlled to high precision. That is very important for such industries like aerospace and automotive, which require high reliability of their components.
3. Versatility - Autoclaves can be used for small size detailed components as well as the large structures in composite manufacturing.
4. Enhanced Material Properties - Autoclave curing process strengthens the adhesion between fibers and resins and, thus, increases the mechanical characteristics of the material including its strength, fatigue, and its ability to withstand impacts. These properties are useful in applications that are rigorous and take place in unfavourable conditions.
5. Reduced Post Processing – Auto-claved parts may not need much post processing hence time and money is saved. The surface finish of the part after autoclaving is quite good and may require minimal sanding or machining.

Disadvantages of Using Composite Autoclaves

1. High Initial Cost - Autoclaves are very costly as compared to other equipment’s in the same category. The start-up costs may be relatively high and this means that they are not very suitable for use by small or low capital manufacturers.
2. Energy Consumption – The autoclave process consumes much energy in heating the chamber and maintaining high pressure needed for the process. This can result in high operating costs and thus greater effects on the environment.
3. Long Cycle Times– The curing process in an autoclave may take hours and at times may even span for days depending on the number of parts to be processed. This can limit production speed and throughput.
4. Maintenance and Operation- Autoclaves like other equipment need to be maintained so that they are always in good working condition. Also, an autoclave requires a trained staff to operate the control systems and maintain safety standards of the machine.
5. Size Considerations – Despite the fact the autoclaves can be designed to accept and cure parts of all sizes there are practical limits to the size of a component that can be cured in an autoclave. Autoclaves and their operation remain one of the most expensive aspects of the process, but extremely large parts may need different autoclaves, driving up the price even more.

Conclusion

Composite autoclaves are powerful tools for creating high-quality carbon fiber products such as carbon fiber tubes and carbon fiber sheets. However, their suitability depends on various factors, including production volume, part size, budget constraints, and desired part properties. For high-volume production of smaller, non-critical parts, alternative curing methods like out-of-autoclave (OOA) techniques may be more cost-effective. Ultimately, understanding the pros and cons of composite autoclaves equips manufacturers to make informed decisions and select the most appropriate curing method for their specific composite fabrication needs.
