Carbon Fiber vs. Titanium: Uncovering Two Engineering Wonders

👁 Reads: 1221

An understated factor in the advancement of various industries can be accredited to the development of metal alloys such as Carbon fiber and Titanium. While both the materials stand out in terms of their unique capabilities, their characteristics together and in comparison, are essential to analyze due to their pioneering results in several diverse industries. This article aims to focus on the understanding of their in-depth development processes and characteristics and provides a comparative analysis of the two materials on paramount parameters.

CARBON FIBER: OVERVIEW

One of the most widely used materials, Carbon Fiber is an extremely lightweight material with high tensile strength. The process begins by picking a precursor material such as a polymer, e.g., pitch, rayon, or polyacrylonitrile. Post stabilization or chemical treatment of this material, carbonization of the process takes place. Carbonization is the process of heating the material at an extremely high temperature in the absence of oxygen, removing all non-carbon atoms. Subsequently, the pure carbon fiber material is exposed to restricted amounts of oxygen at elevated temperatures to improve the material’s properties while removing the impurities. This carbon fiber material is coated with materials such as epoxy resin to amalgamate it further with better adhesion with the matrix material resulting in composites. The application of this freshly prepared final carbon fiber material then commences by winding this onto rolls or bundles resulting in carbon fiber sheets, tubes, and rods.

The nature of precursor material determines the specific manufacturing process that needs to be undertaken, ultimately deciding the intended applications. This diversity makes carbon fiber one of the most adaptable and widely used materials. In industries such as aerospace and spacecraft, carbon fiber is also used for manufacturing high-performance vehicles as well as Formula 1 racing cars due to its increased aerodynamic efficiency. Carbon fiber also finds wide usage in the making of wind turbine blades, boat hulls, and related components, sports equipment such as bicycles and tennis rackets, and consumer goods such as luggage, watches, and jewelry.

TITANIUM: AN UNDERSTANDING

While carbon fiber continues to fuel innovation, titanium is a metal known for its corrosion resistance and high tensile strength which gives tough competition to carbon fiber based on the engineering adopted. Natural minerals, mainly rutile and ilmenite, are extracted using underground or open-pit operations. These mineral ores are processed by crushing, grinding, and chemical treatment to remove impurities and separate the waste from the valuable titanium materials. An intermediate compound is then created by exposing these minerals to chlorine gas and coke, often termed as chlorination process. This intermediate compound is called titanium tetrachloride. Fractional distillation, or separation of the tetrachloride and impurities, then takes place by using variations in boiling points. A highly reactive reducing agent, such as sodium or magnesium, is made to react with this purified titanium tetrachloride to produce sponge titanium. The sponge titanium then goes through the Kroll process by melting in a vacuum or inert gas environment to cast into a solid ingot in required shapes and sizes. Interestingly, the market application of this material occurs after this stage by alloying it with other metals by melting, casting, processing, and fabricating.

The results in this multi-step process are found in various fields such as military and defense equipment like armor plating and vehicle plating, aerospace industry components such as landing gear and engine components, automotive industry parts, ship components, medical implants, jewelry and watches, electronic components as well as diving equipment.

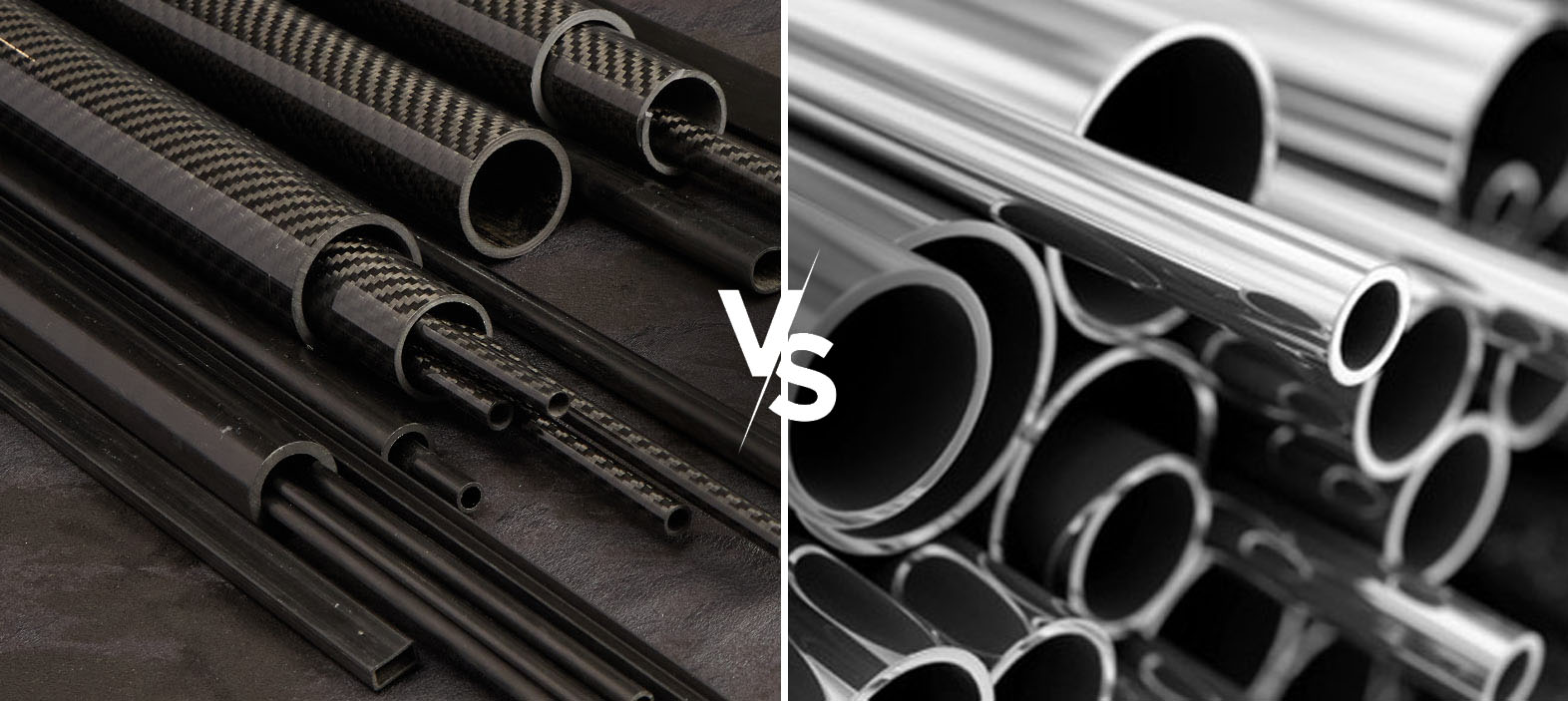

CARBON FIBER VS TITANIUM: A COMPARATIVE ANALYSIS

Both materials stand as high-performance materials with distinct advantages and applications. The choice of one material over the other is dependent on various parameters such as tensile strength, weight reduction, corrosion resistance, cost, etc. The most defining parameters are analyzed as follows:

Tensile strength:

Carbon Fiber: In the case of carbon fiber, the analysis of tensile strength is determined based on the direction in which the carbon fabric is woven. While unidirectional fiber material is high in tensile strength, off-axis integration contains weaker forces. Although this leads to slightly lesser density, it also makes the material more resilient in case of applied stresses. The combination of high tensile strength and low density gives it a higher strength-to-weight ratio than titanium.\

Titanium: It is pertinent to mention that since titanium materials are often in use because of their heterogenous nature (titanium alloy), the properties of this material are often enhanced due to the same, giving it higher tensile strength. The same however like carbon fiber, is subject to the grade and nature of specific allow.

Corrosion Resistance:

Carbon Fiber: The corrosive nature is based on the inherent resistance to corrosion due to its carbon-carbon bonds. However, the matrix materials, such as epoxy raisin play a major role in determining the intensity of corrosion resistance. Epoxy raisin for instance reduces the corrosion resistance of the carbon fiber composite.

Titanium: Titanium, however, due to its ability to form a protective oxide layer outperforms carbon fiber. Its tolerance for high temperatures and resistance to acids and bases makes it the choice.

Weight:

Carbon Fiber:The low density and higher strength-to-weight ratio results in carbon fiber being one of the lightest engineering materials. This makes this an ideal choice in applications of aerospace, high-performance vehicles, and sports equipment.

Titanium: Although titanium is much lighter than other materials, its density whilst providing an average strength-to-weight ratio and longer durability, results in a higher all- up weight than carbon fiber.

Cost:

Carbon Fiber: While the processing of carbon fiber may not be cost-impacting, the manufacturing of carbon fiber composite is generally more expensive than titanium.

Titanium: The choice of the alloy used in the final processing of the titanium often leads to an increase in the price. However, the use of an economical material can also result in significantly lower costs.

KEY TAKEAWAY

While both materials offer definite capabilities subject to respective conditions ranging from temperature to application, the choice between the two essentially is dependent on the requirement of the industry and the application. For instance, to reduce the All up Weight of a drone, carbon fiber is the preferred material but to use the same drone for a firefighting application, a coating of titanium alloy is likely to provide high resistance in the process of entering a building on fire. With carbon fiber excelling in high strength, elastic, and weight-sensitive sectors, titanium exceeds its performance in durability, biocompatibility, and corrosion resistance. The two versatile metallurgical developments, despite their variances, have resulted in new possibilities in various fields with promising results.
