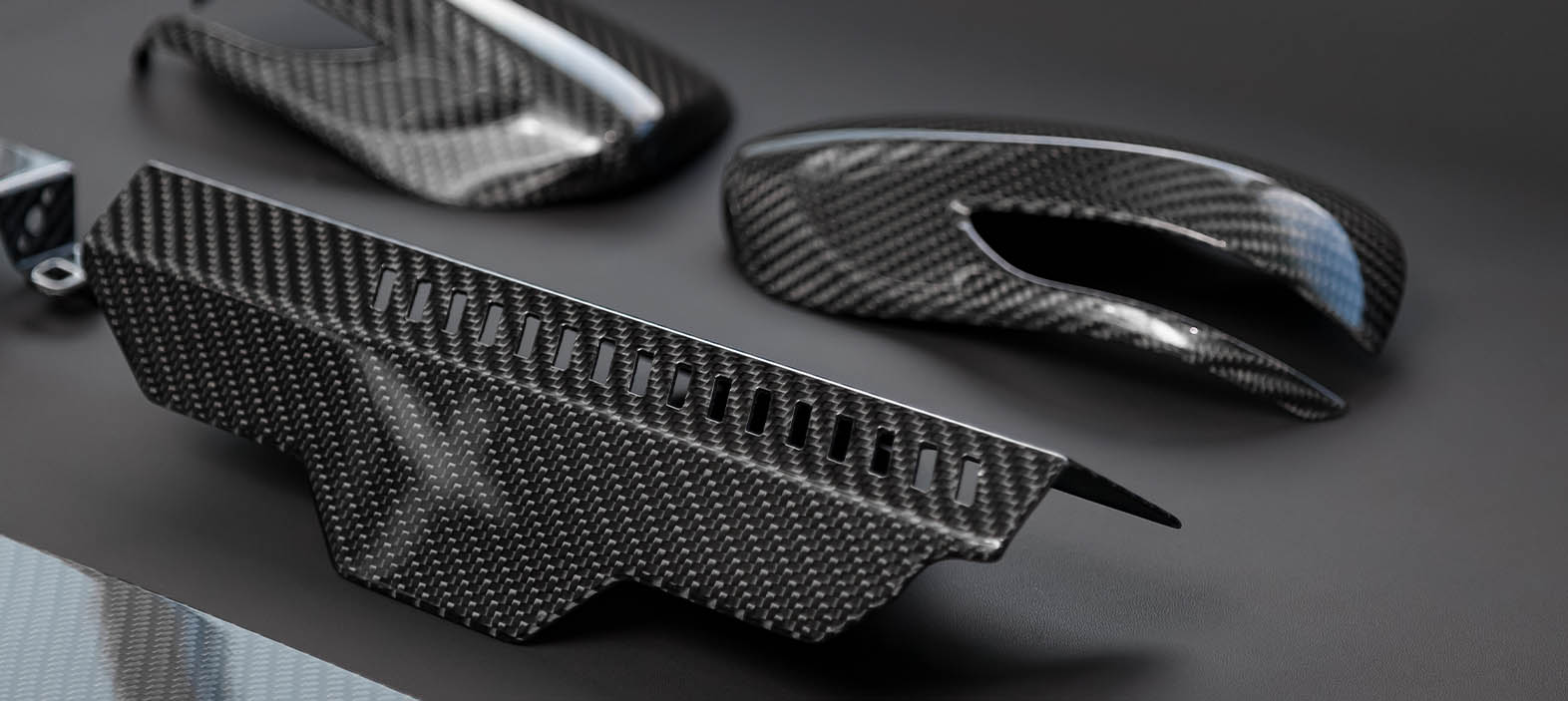

Customizing Carbon Fiber Parts: Techniques, Tools, and Pro Tips

👁 Reads: 1542

Carbon fiber means strength, style, and high performance. Motorsports, aerospace, and consumer electronics utilize it, all because carbon fiber components are incredibly light yet amazingly strong. For customizing carbon fiber components, precision and technique are required so you don't damage the structure or its appearance. When you trim a pre-fabricated panel or mold a custom intake scoop, handling this composite is an exact science and art.
This article offers a clear breakdown of carbon fiber fabrication techniques, shaping tools, safety precautions, and expert tips to help you achieve clean, professional results.

Carbon Fiber Fabrication Techniques
Before you start cutting or shaping, it’s important to know how carbon fiber parts are made in the first place. This affects how you modify or finish them later on.

1. Wet Lay-Up and Vacuum Bagging: Wet lay-up is the process of laying dry carbon fabric on a mold and then wetting it with epoxy. For increased strength and air bubble-free, vacuum bagging is often used—this compresses the resin and fabric under pressure for a cleaner finish.
2. Prepreg and Autoclave Curing: Applications that require high performance employ prepreg carbon fiber (resin pre-impregnated fabric) cured within an autoclave. It creates perfect fiber-to-resin ratios and results as very strong, lightweight parts. It's a favorite within the aerospace and motorsport industries.
3. Compression Molding and Forged Carbon: In high-volume manufacturing settings, forged carbon or compression molding allows for quick duplication of parts. While tooling is costly, the process is suited for complex or high-volume shapes such as automobile trim or performance brackets.

Cutting Carbon Fiber the Right Way

Once your piece has been manufactured or bought, the next thing is to cut it to size. Carbon fiber does not cut like wood or metal and sloppy cutting causes frayed edges or delamination.

Cut with abrasive wheels, fine cutting saws, or rotary equipment like a Dremel when hand-cutting. For cleaner, precise cuts, use CNC routers with solid carbide down-cut bits. The bits will not lift or chip the fibers.

It is recommended to cut slowly to prevent heat buildup, which can lead to epoxy weakening. Safety glasses, nitrile gloves, long sleeves and a respirator (at least N95) must be used at all times to not inhale fine dust. Proper ventilation or dust-extraction system is required. Carbon fiber dust irritates lungs and skin, and it's conductive, placing things around electronics in danger.

Modifying and Shaping Carbon Fiber Parts

You may need to finish the shape or add features like holes or slots after cutting. This is the phase where accuracy and caution pay off most.

Always use carbide drill bits and start with a pilot hole. Clamping the part prevents splitting. Trimming, if necessary, can be accomplished with sanding drums or composite files.

For tubular structures, wrap carbon fiber around a mandrel. For lightweight structural parts, skin a foam, wood, or 3D-printed core with fabric and resin. This is custom geometry without a loss in strength.

Sanding and Finishing Edges

Even if your part functions well, rough edges or uneven surfaces can ruin the look and sometimes the integrity.

1. Sanding Carbon Fiber: Start wet-sanding with 400 grit and move up to 1000 or even 2000 grit, depending on the desired finish. Wet sanding helps reduce airborne dust and keeps the surface from overheating.
2. Edge Finishing Methods: Sealing the edge with epoxy after sanding is one of the carbon fiber edge finishing methods. It prevents fraying and gives the part a smooth, high-gloss finish. Some professionals apply a UV-clear coat to seal the weave and keep it looking good.

Tools & Materials for Carbon Fiber Customization

Having the right tools is half the work. Here’s a quick checklist of go-to equipment:

Pro Tips & Best Practices

Working with carbon fiber can be tricky, especially when aiming for professional-level results. These tips help ensure safety, precision, and long-term performance:

1. Mask up and dust contain: Always wear a respirator mask when cutting or sanding. Carbon dust is hazardous and should never be inhaled. Cut in a well-ventilated space or with an enclosure and vacuum extraction.
2. Support the part firmly before cutting: Use clamps or a soft vice to support the carbon fiber and keep it from moving or chipping when being cut.
3. Score first, cut second: Light scoring of the cut line on hand tools can avoid edge tear-out with deeper cutting.
4. Practice it on scrap: Before attempting a new method or tool, test it on scrap carbon fiber to prevent expensive failures.
5. Sealing the edge is not optional: Seal edges with resin or clear coat after sanding to avoid delamination and wear later on.
6. Prevent excessive friction at high speeds: Excessive heat can deteriorate the resin matrix. Use sharp tools and soft speeds to keep the heat levels low.

Conclusion

Customizing carbon fiber parts is an art form of precision, the proper tools, and technique. Regardless of whether you're trimming, shaping, or modifying a part, safety is always the number-one priority, and never are you cutting corners on finish quality. The proper technique will enable you to create clean cuts that preserve the strength, look, and lightness that make carbon fiber so attractive.

From motorsport modifiers to hobby makers of e-bikes or drones, understanding carbon fiber production processes, carbon fiber shaping tools, and finish processes is the key to successful customization.

Take your time, respect the material, and let your imagination get wild—because when done right, custom carbon fiber isn't just functional; it's art.
