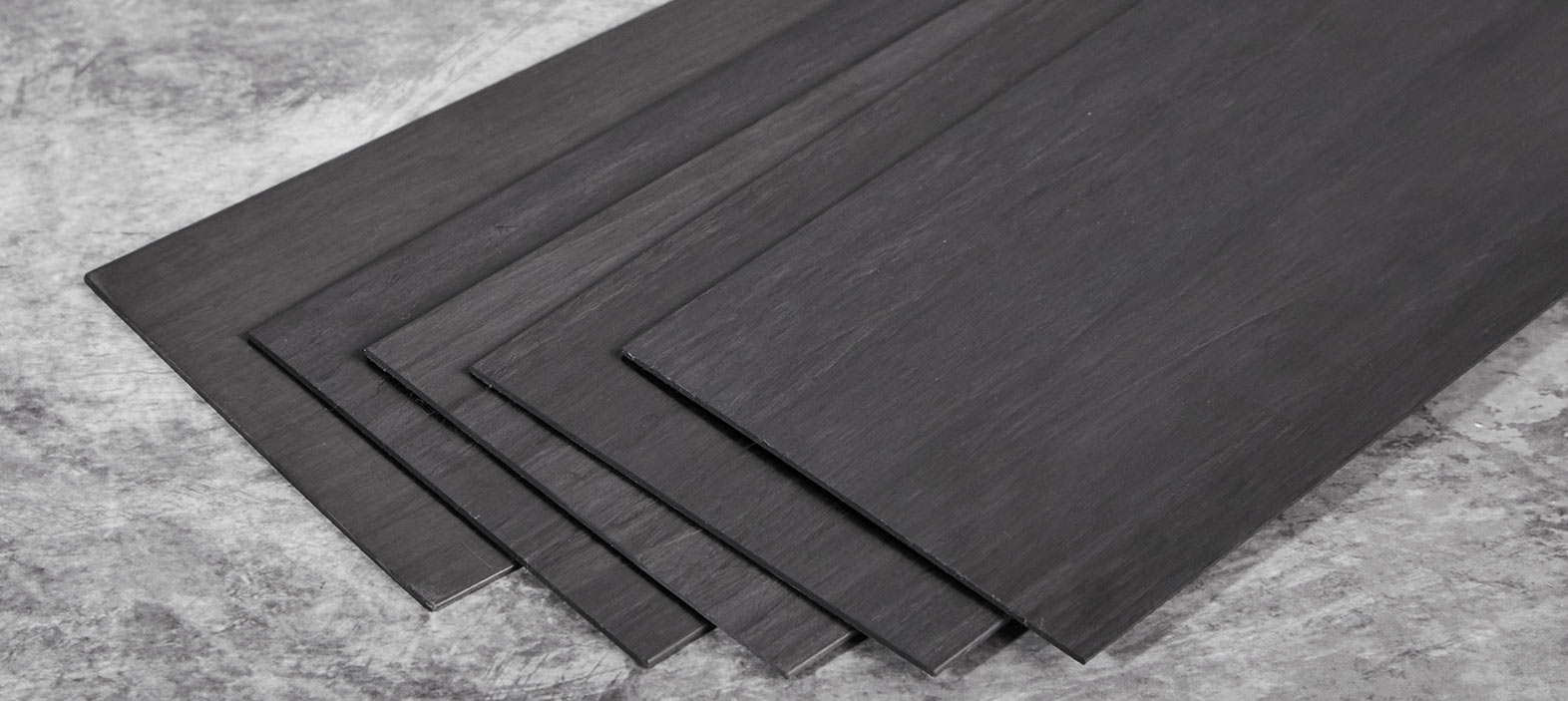

Prepreg vs Laminated Carbon Fiber Sheets : Which One Is Right for You?

👁 Reads: 1323

Choosing the right type of carbon fiber sheet will either make or destroy your project, whether you are creating a drone, aerodynamic mod for a race car, or aerospace components. Two of the most popular varieties are prepreg carbon fiber sheets and laminated carbon fiber sheets. They each have certain strengths, weaknesses, and ideal uses. This article provides you with a detailed comparison so you can decide which one suits your needs.

What Are Carbon Fiber Sheet Types?

Carbon fiber sheets are light and high-strength materials that are manufactured through the bonding of carbon fibers in a polymer matrix. They are applied universally in all industries from automotive to sports gear, maritime, and space because they possess a high strength-to-weight ratio, stiffness, and thermal stability.

Depending on the way they are made, carbon fiber sheets are categorized into different types. These are prepreg carbon fiber sheets (prepreg CFRP sheets) and laminated carbon fiber sheets. Both find application in structural and visual purposes but differ in material properties, performance, and process of manufacturing.

Types of Carbon Fiber Sheets

1. Prepreg Carbon Fiber Sheets: These are pre-impregnated fibers, carbon fabric pre-coated with a controlled amount of resin. They must be cured under control (typically in an oven or autoclave) and provide unmatched consistency and strength.
2. Laminated Carbon Fiber Sheets: Also known as "wet lay-up" or "vacuum-bagged" sheets, these are made by piling dry carbon fabric and coating with resin by hand before compression and curing. They're typically more widely available and cost-effective.

It is necessary to know about the differences in carbon fiber sheet grades in order to choose the best material for your product.

Performance & Quality Comparison

Performance-wise, prepreg CFRP sheets are outstanding. They offer improved accuracy, resin-to-fiber ratios, reduced void content, and excellent repeatability. These are the kinds to utilize in high-performance, safety-critical, or load-bearing applications such as aerospace, automotive monocoques, or high-end sporting goods.

On the other hand, laminated carbon fiber sheets are of mixed quality with the production process. While far from prepreg structurally consistent, the newest vacuum-infusion process highly improves their quality to apply to most semi-structure and cosmetic use.

Overall, prepreg has precision and performance but laminated sheets have low cost and flexibility.

Manufacturing Workflow

The manufacturing workflow of each type heavily influences the final product quality and complexity.

Prepreg carbon fiber requires cold storage, delicate treatment, and curing with heat and pressure. It involves the use of specialized equipment like autoclaves or heated presses, therefore making it more expensive but highly precise.

Laminated carbon fiber sheets do involve piling dry fabric on resin and vacuum bagging or open mold curing. This is more time-consuming and appropriate for small project or DIY production. While the process is simpler, there is room for inconsistencies, particularly resin flow and fiber alignment.

Having an understanding of these workflows provides a basis for consideration of what's possible for your project's time allowance, technical competency, and equipment.

Cost & Resources

Cost is likely the largest factor in the prepreg vs laminated carbon fiber debate.

Prepreg CFRP sheets cost more due to the fact that they are superior quality, need refrigeration, and involve specific curing processes. They're perfect for high-spending or mission-critical use.

Laminated carbon fiber sheets cost less. You don't need high-end machinery, and the raw materials are simpler to acquire. There may be sacrifices, however, in consistency and mechanical strength.

Additionally, prepreg production is less wasteful of resin but more skill and planning-intensive. Laminated production offers more flexibility but may result in excess resin and clean-up.

When to Choose Each Option

If producing something that is a high-performance, structural part such as aerospace frames, F1 car panels, or carbon fiber prosthetics, use prepreg carbon fiber. It gives strength, precision, and resilience.

For budget-constrained applications, DIY fabrication, or aesthetic parts like dashboards or laptop skins, laminated carbon fiber sheets will be adequate. They provide you with good looks and adequate strength without prepreg's expense and complexity.

In summary, use prepreg when you cannot risk failure. Use laminated when form and function at a lower price are all you need.

Structural vs Cosmetic Carbon Fiber

Not all applications of carbon fiber require the same degree of strength or performance. This is where structural vs cosmetic carbon fiber comes in.

Structural carbon fiber, typically made of prepreg, possesses high tensile strength, stiffness, and toughness. It's meant to carry loads, withstand fatigue, and maintain shape under stress. This is necessary for such applications as aircraft parts or high-performance bicycle frames.

Cosmetic carbon fiber, also more commonly laminated, is more about looks than strength. These sheets can use lower-tow fibers and can skip high-pressure curing. They're perfect for interior panels, phone covers, or trimmings for cars, places where looks are more desired than load-bearing capacity.

Pair the sheet type with the purpose of your design to avoid overengineering—or worse, under-engineering.

Carbon Fiber Sheet Comparison: Prepreg vs Laminated Carbon Fiber

In the discussion of prepreg vs laminated carbon fiber balancing, it all boils down to application, price, and performance need. Prepreg CFRP sheets are the best in terms of quality and precision and are most ideal for mission-critical load-bearing applications. Laminated carbon fiber sheets offer an easy, inexpensive way to address cosmetic or semi-structural needs.

Before making a selection, keep in mind the purpose of the part, your tools available, and if the project requires structural integrity or aesthetic appeal. The proper type of carbon fiber sheet guarantees your construction looks as great as it handles.
