What is a Carbon Fiber Braided Tube? A Complete Guide
👁 Reads: 258

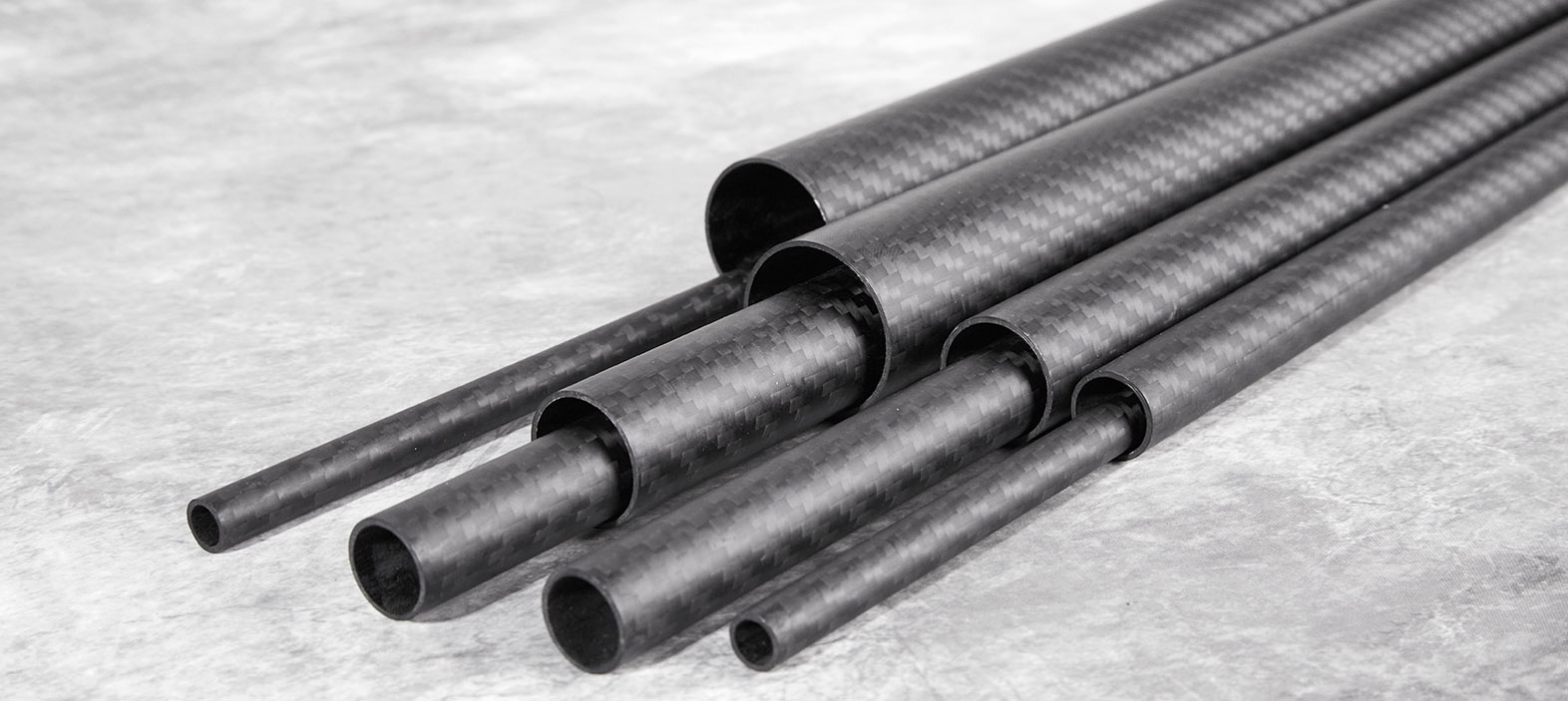

Carbon fiber braided tubes are advanced engineering components made from carbon fiber materials that are woven into a tubular form. Known for their superior strength-to-weight ratio and remarkable durability, these tubes are widely used in various high-performance industries such as aerospace, automotive, sports equipment, and robotics. In this guide, we will explore how braided carbon fiber tubes are made, their unique properties, and their wide range of applications.
1. How Are Carbon Fiber Braided Tubes Made?
The manufacturing process of carbon fiber braided tubes involves several key steps that ensure the resulting product has the desired mechanical properties:
Step 1: Preparing Carbon Fiber Prepreg
The process begins with carbon fiber prepreg, which is carbon fiber strands coated with a resin. The prepreg material ensures the fibers are well-bonded during the braiding and curing process.
Step 2: Braiding
A braiding machine is used to weave carbon fiber strands into a specific pattern around a mandrel or core. The braiding technique is essential in determining the mechanical properties of the tube. The braiding process can either be done in a 2D or 3D pattern, depending on the required strength and flexibility of the final product.
- 2D Braiding: Involves weaving fibers in two dimensions, resulting in a balanced, isotropic structure.
- 3D Braiding: Creates a three-dimensional structure, which improves the strength and stability of the tube in all directions.
The braiding machine arranges the carbon fiber strands at specific angles (usually 45°, 90°, or a combination), creating a crisscross pattern that maximizes strength and flexibility.
Step 3: Curing
After braiding, the tube is subjected to a curing process. During curing, the resin in the prepreg is heated, causing it to harden and bond the carbon fibers together. The tube is typically placed in an autoclave (a high-pressure oven) or an oven for curing, where precise temperature and pressure are applied to ensure optimal resin flow and bonding between fibers.
Step 4: Finishing
Once cured, the tube is removed from the mandrel, and any excess material is trimmed. The tube may also undergo additional processes such as polishing, coating, or coating with a protective layer to enhance durability, resist environmental factors, and improve the finish.
2. Properties of Carbon Fiber Braided Tubes
Carbon fiber braided tubes exhibit several properties that make them highly sought after for demanding applications:
Strength-to-Weight Ratio
One of the most remarkable properties of carbon fiber braided tubes is their strength-to-weight ratio. Carbon fiber is incredibly strong yet extremely light, making it ideal for applications where both strength and weight are critical considerations.
High Stiffness
The braiding process results in a tube with excellent stiffness, which helps prevent bending or deformation under load. This makes carbon fiber braided tubes ideal for structural components where maintaining shape and form is essential.
Durability
The carbon fibers are resistant to corrosion and fatigue, meaning the tubes can withstand harsh environments and repeated stress over time without significant wear or degradation. Additionally, they are resistant to UV radiation, chemicals, and extreme temperatures, further enhancing their durability.
High Impact Resistance
The interlacing structure of the braided fibers gives carbon fiber tubes high impact resistance. Unlike solid carbon fiber structures, braided tubes have some inherent flexibility that allows them to absorb and dissipate impacts more effectively.
Electrical Conductivity (or Insulation)
Depending on the type of resin and the type of fibers used, carbon fiber tubes can either conduct electricity or be non-conductive. This versatility is beneficial for specific applications where either property is needed.
Customization
The braiding process allows for a high degree of customization in terms of the angle and pattern of the fibers. This means the tube’s properties, such as stiffness, flexibility, and strength, can be adjusted based on the requirements of a particular application.
3. Applications of Carbon Fiber Braided Tubes
Due to their unique properties, carbon fiber braided tubes are used in various industries. Here are some of the most common applications:
Aerospace
In aerospace, the lightweight and durable properties of carbon fiber braided tubes make them suitable for aircraft structures, control surfaces, and other critical components.
Automotive
In motorsports and high-performance vehicles, carbon fiber braided tubes are used in parts like suspension systems, chassis components, and roll cages. These tubes provide a lightweight alternative to traditional materials like steel, enhancing vehicle performance without compromising on safety or strength.
Sports Equipment
From bicycles to golf clubs and tennis rackets, carbon fiber braided tubes are used in a wide range of sports equipment. They are ideal for manufacturing shafts and frames, where strength, low weight, and stiffness are required for optimal performance.
Robotics
In robotics, carbon fiber braided tubes are used in robotic arms, actuators, and frames. Their lightweight and stiff nature allows for precise movements while reducing the weight load on motors and actuators.
Marine Industry
Carbon fiber braided tubes are also used in marine applications such as sailboats and submarines. Their resistance to corrosion and ability to withstand harsh environmental conditions make them well-suited for underwater applications.
Medical Devices
In the medical field, carbon fiber tubes are utilized in devices that require both lightweight and high-strength characteristics, such as prosthetics, medical imaging equipment, and surgical instruments.
4. Advantages and Challenges of Carbon Fiber Braided Tubes
Advantages
- Lightweight: Reduces weight in critical applications, improving efficiency.
- Durability: Resists wear, corrosion, and fatigue, resulting in longer product life.
- High Strength: Offers superior strength even under heavy loads.
- Customization: Can be tailored for specific needs, such as stiffness or flexibility.
Challenges
- Cost: The production process for carbon fiber braided tubes can be expensive, making them less cost-effective for mass-market applications.
- Complex Manufacturing: Creating highly customized braided tubes requires specialized equipment and expertise.
- Brittleness: While strong, carbon fiber is susceptible to brittle failure under certain conditions, especially when subjected to sharp impacts.
Carbon fiber braided tubes are a remarkable product of modern engineering, offering excellent strength, stiffness, and durability at a lightweight. Their unique properties make them suitable for high-performance applications across many industries, from aerospace and automotive to sports and robotics. As manufacturing techniques continue to improve, the versatility and cost-effectiveness of these tubes are likely to increase, opening up even more potential uses in the future.
